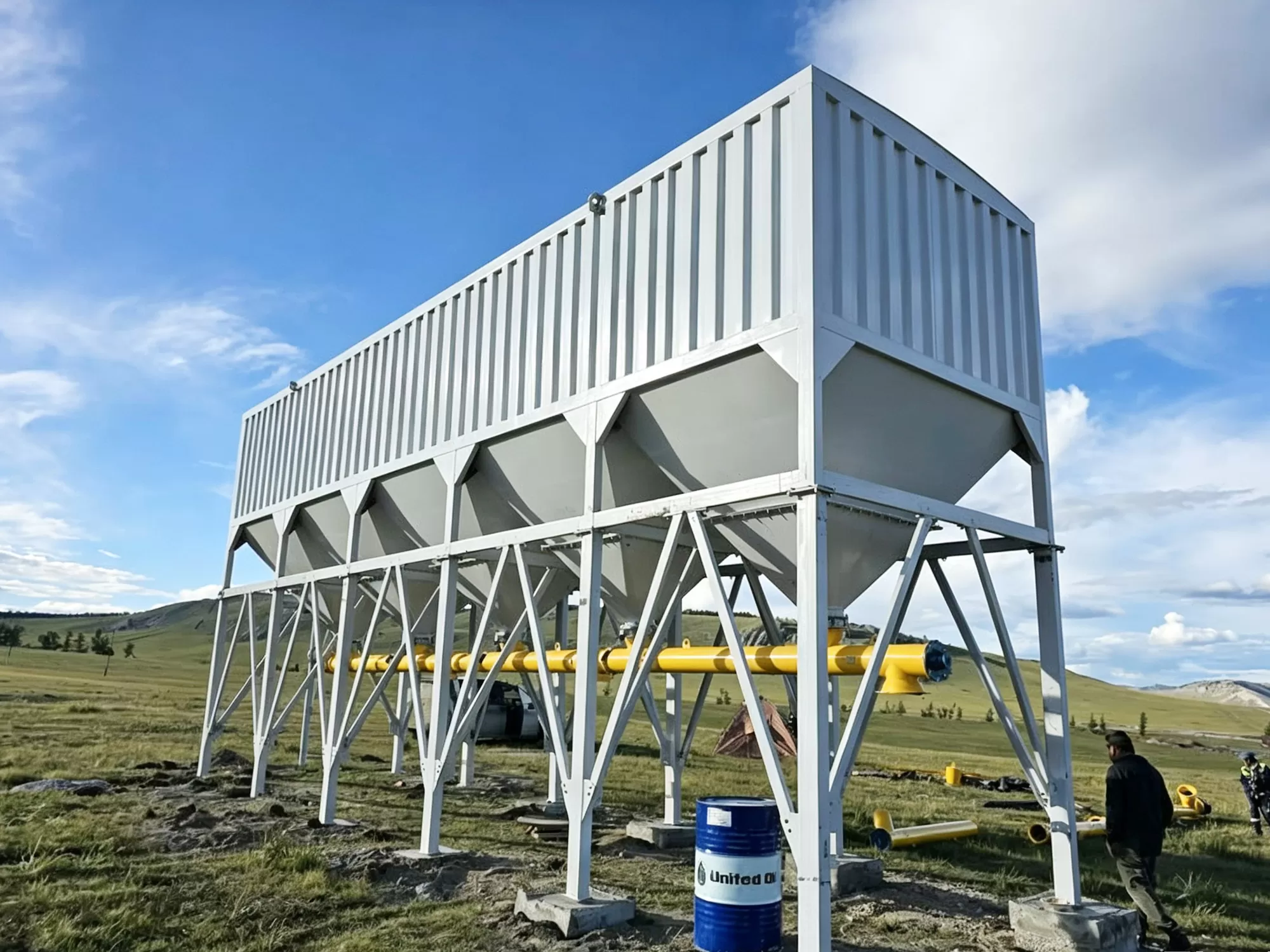

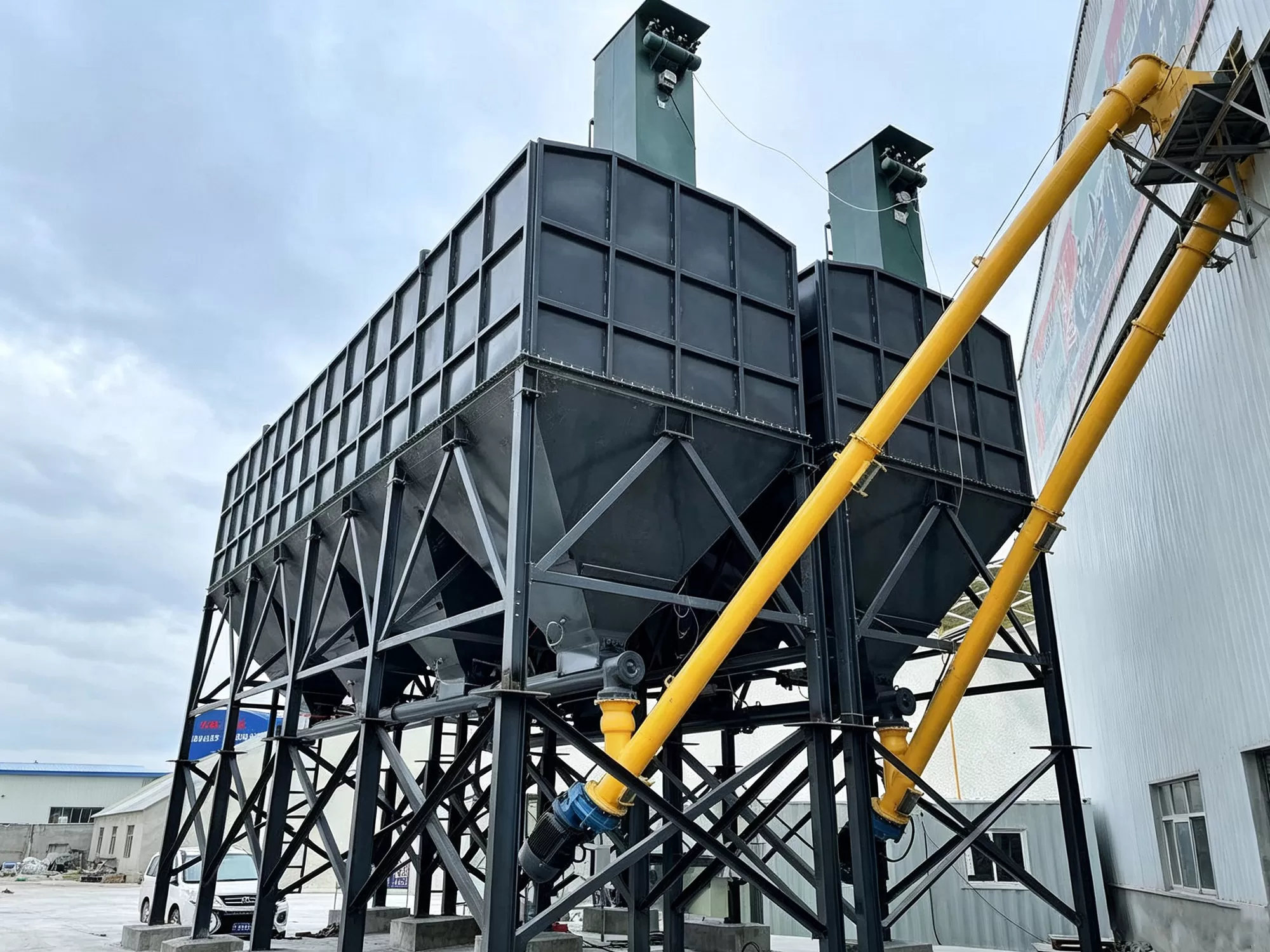

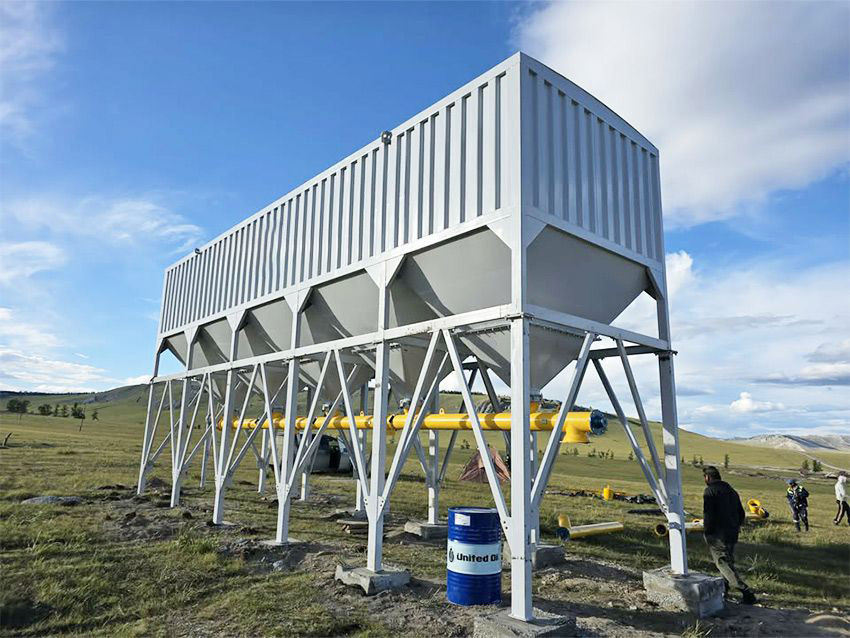

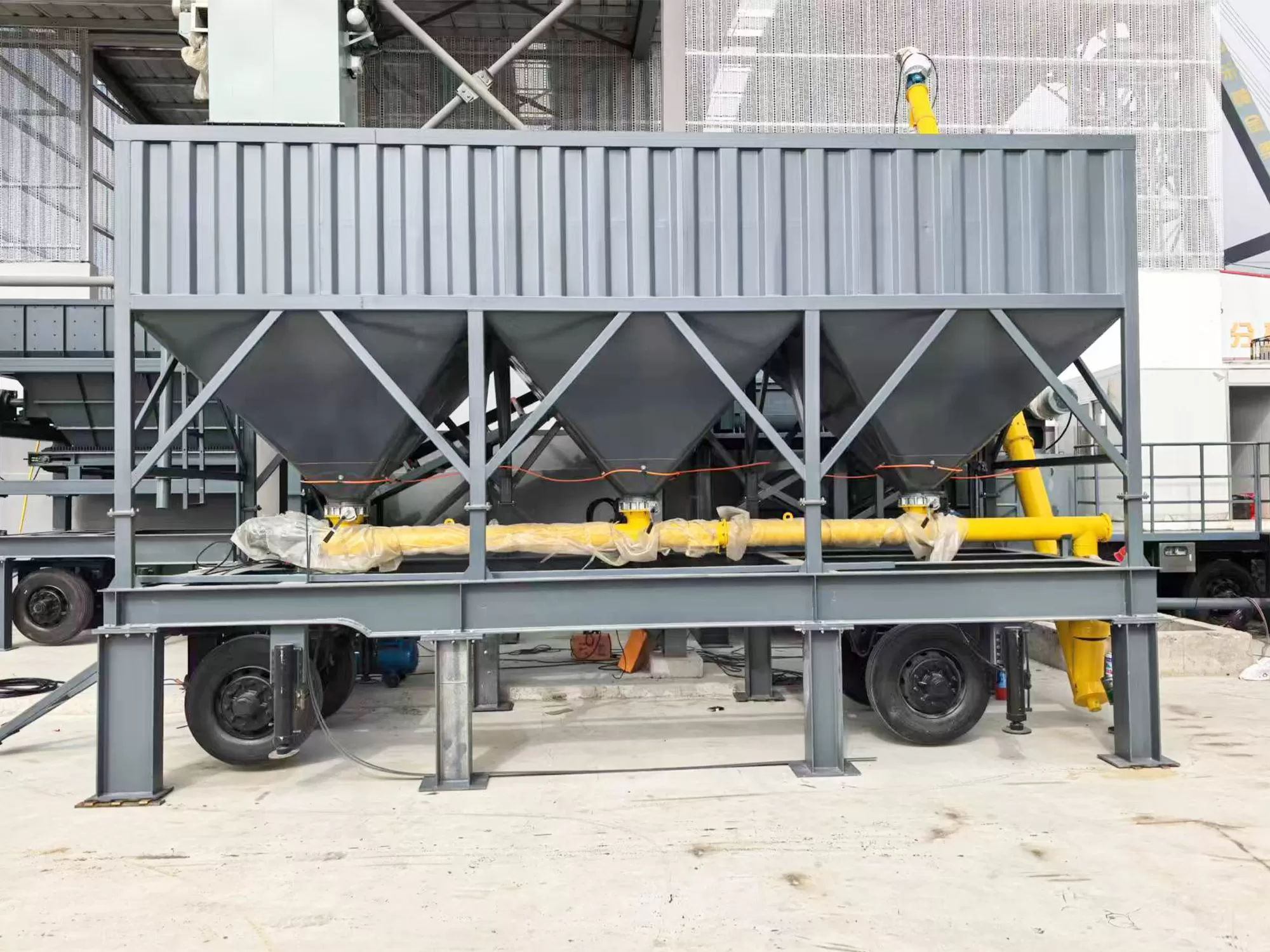

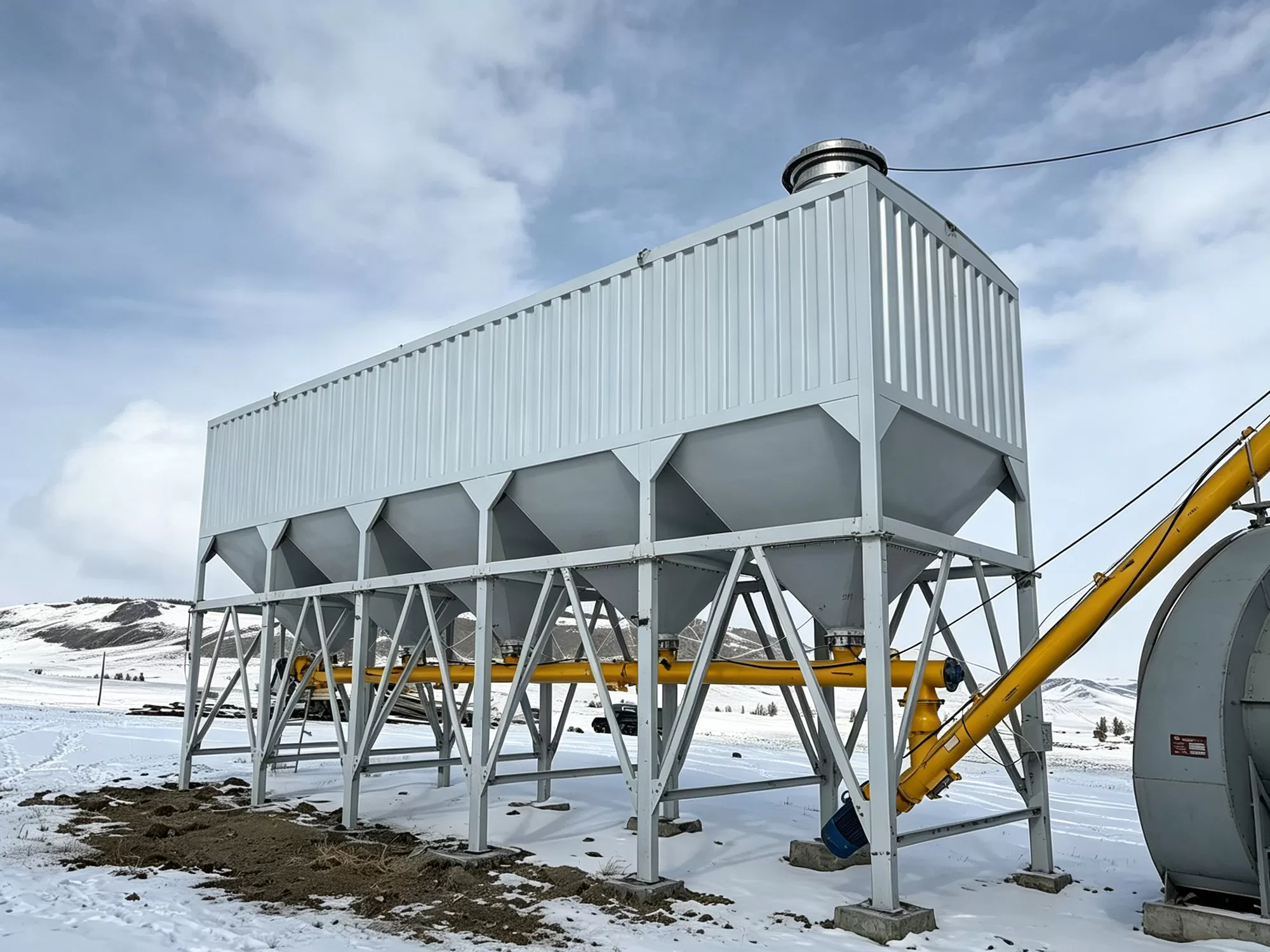

Horizontal cement silos, also known as containerized low-profile cement silos, adopt a horizontal box structure, abandoning the traditional vertical cylindrical shape, significantly reducing the overall height and eliminating the need for complex civil engineering foundations. They are shipped pre-welded and require no disassembly, making them suitable for mixing projects with height restrictions, limited space, and frequent relocation. Mainstream sizes range from 50T to 150T, and they are often paired with YHZS mobile mixing plants.
| Name & Specification | Length and width | Thickness of plate | Legs | Weight | Height of silo body | Total height | Height of legs | Container quantity |
| 60t | 7 / 2.2m | 4 / 3 mm | 150mm | 5.8t | 2.4m | 4.7m | 1.5m | / |
| 80t | 9 / 2.2m | 4 / 3 mm | 150mm | 6.5t | 2.4m | 4.7m | 1.5m | / |
| 100t | 11m | 4 / 3 mm | 150mm | 7.2t | 2.4m | 4.7m | 1.5m | / |
