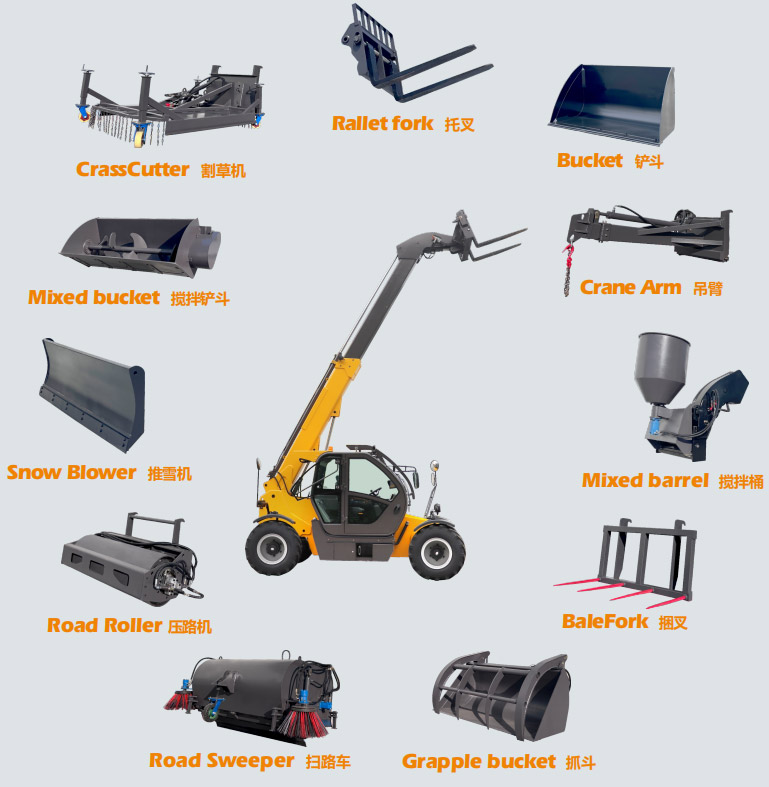

The telescopic boom forklift merges the functions of a forklift, crane, and loader into one machine. With a quick-change boom-head interface, it accepts dozens of attachments—forks, hooks, buckets, aerial platforms, and more—covering loading, high-altitude installation, bulk handling, and heavy lifting while cutting purchase and maintenance costs.
Its telescopic boom delivers heights from 6 to 18 meters and capacities from 2 to 7 tons—far beyond conventional forklifts. Ideal for feeding truck or tower cranes, roof work, or curtain-wall installation, the long reach gives you better positioning without crowding the job site.
Four-wheel drive and three steering modes handle mud, ruts, and tight spaces with ease. Select models add auto-leveling and rear-axle floating lock for stability on slopes. The panoramic cab, joystick controls, color touchscreen, ROPS-FOPS certification, plus load detection, active protection, and remote diagnostics keep operators safe, comfortable, and productive through long shifts.
One machine. Endless jobs. All in one.
| Category | Parameter | Code | Value |
| Capacities | Max. capacity | 4000 kg | |
| Max. lifting height | 10.6 m | ||
| Max. outreach | 6.1 m | ||

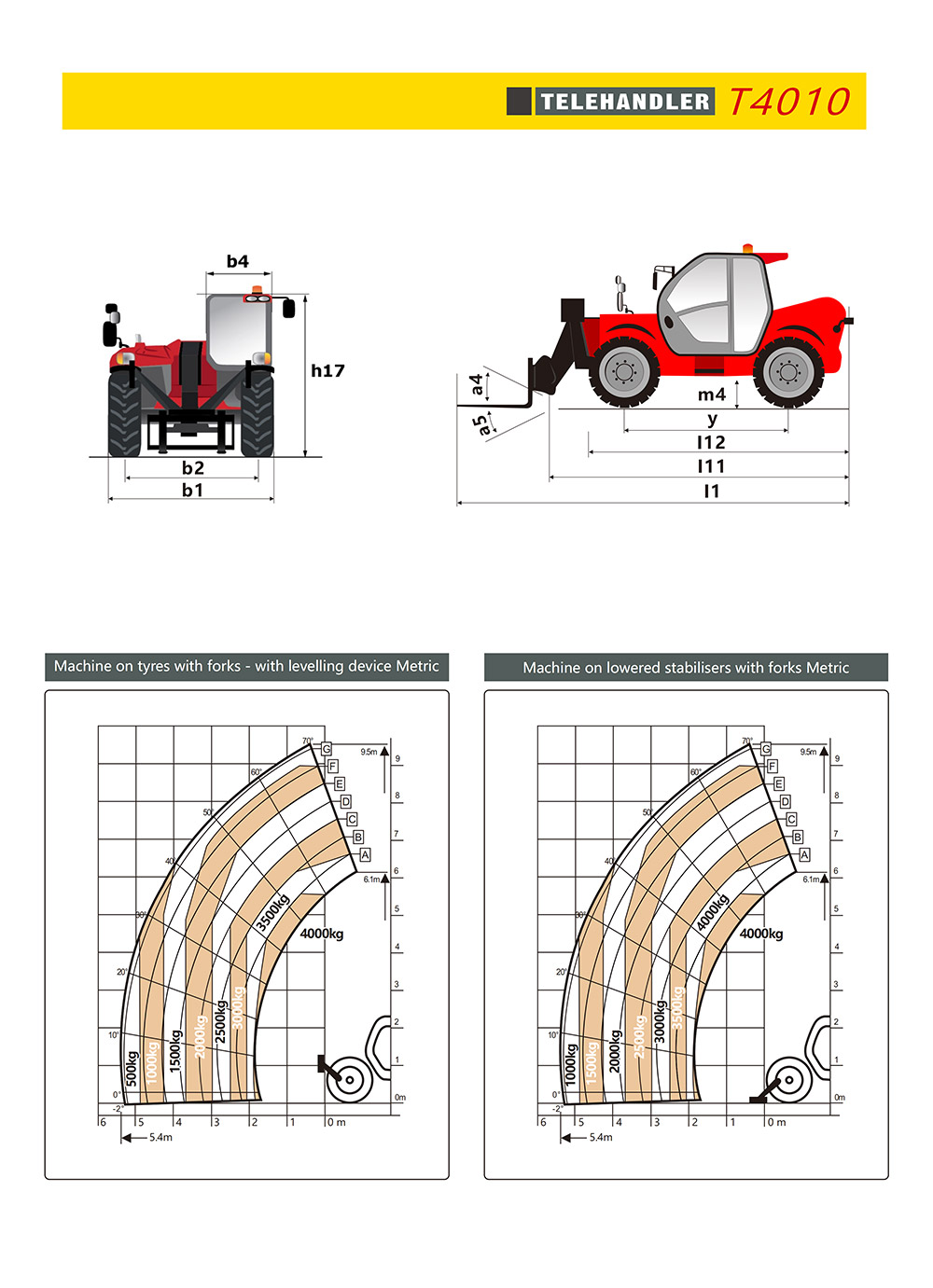

| Weight and dimensions | Overall length to carriage | I11 | 5.8 m |
| Length to face of forks | I1 | 7.0 m | |
| Min transport size | I12 | 5.05 m | |
| Overall width | b1 | 2.2 m | |
| Track width | b2 | 1.78 m | |
| Overall height | h17 | 2.55 m | |
| Wheelbase | y | 3.15 m | |
| Ground clearance | m4 | 0.35 m | |
| Overall cab width | b4 | 0.84 m | |
| Tilt-up angle | a4 | 12° | |
| Tilt-down angle | a5 | 90° | |
| External turning radius(over tyres) | 4.25 m | ||
| Unladen weight(with fork) | 10300 kg | ||
| Tires type | Tubeless | ||
| Standard tires | I/e/s | 400/70-24 | |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm | ||
| Performances | Lifting | 10 s | |
| Lowering | 7 s | ||
| Extension | 12 s | ||
| Retraction | 8.6 s | ||
| Crowd | 4.8 s | ||
| Dump | 3.4 s | ||
| Engine | Engine brand | Yuchai (optional brand) | |
| Engine norm | National II | ||
| Max. fuel sulphur content | 5000 ppm | ||
| Engine model | YCD4J22T-115 | ||
| Number of cylinders / Capacity of cylinders | 4 - 4400 cm³ | ||
| I.C. Engine power rating - Power | 114 Hp / 85 kW | ||
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | ||
| Drawbar pull (Laden) | 10000 daN | ||
| Transmission | Transmission type | Torque converter (optional hydrostatic) | |
| Number of gears (forward / reverse) | 4 / 4 | ||
| Max. travel speed | 35 km/h | ||
| Parking brake | Automatic air-cut brake (optional wet brake) | ||
| Service brake | immersed multi-discs braking on front & rear axles | ||
| Hydraulics | Hydraulic pump type | Gear pump (optional piston pump) | |
| Hydraulic flow | 150 L | ||
| Tank capacities | Engine oil | 5.5 L | |
| Hydraulic oil | 170 L | ||
| Fuel tank | 195 L | ||
| Noise and vibration | Noise at driving position (LpA) | 82 dB | |
| Noise to environment (LwA) | 105 dB | ||
| Vibration on hands / arms | < 2.50 m/s² | ||
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 | |
| Drive wheels (front / rear) | 2 / 2 | ||
| Safety cab homologation | FOPS level 2 cab |
