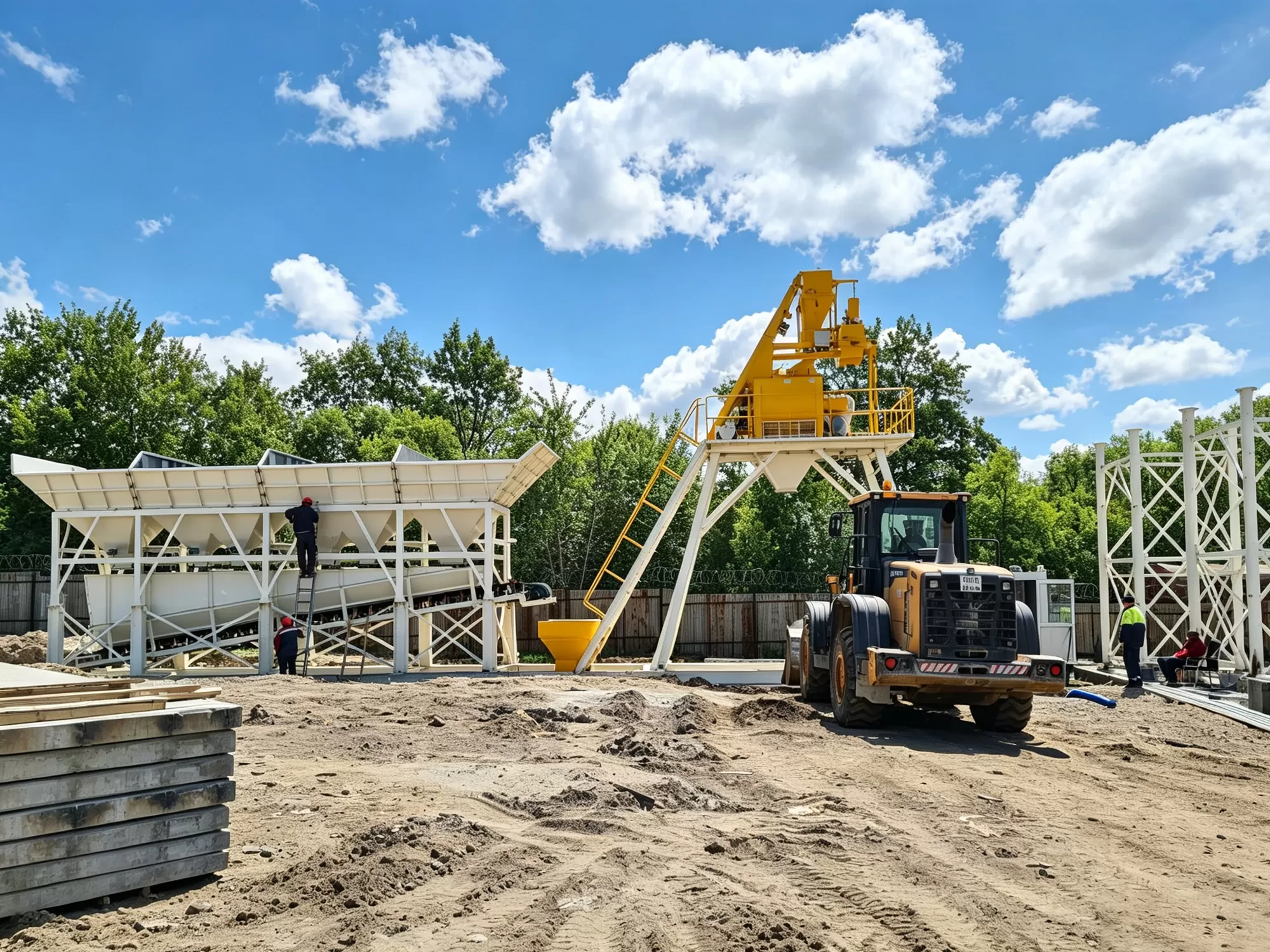

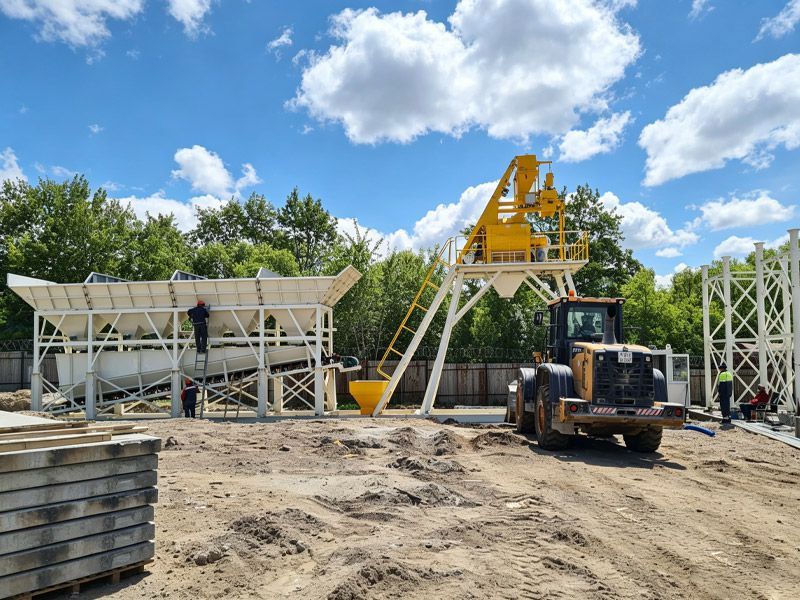

Foundation-free concrete mixing plant (25-270 m³/h)
Complete steel structure chassis requires no ground foundation, eliminating the time spent building a ground foundation and allowing for rapid installation and production.
Modular production, making it more suitable for rapid relocation and site transfer. Fully automated control system.
| PARAMATERS | HLS60 | HLS90 | HLS120 | HLS180 | HLS240 | HLS270 |
| Theoretical productivity | 60 m³/h | 90 m³/h | 120 m³/h | 180 m³/h | 240 m³/h | 270 m³/h |
| Model of mixer | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 | JS4500 |
| Mixing motor power | 2x18.5kw | 2x30kw | 2x37kw | 2x55kw | 2x75kw | 2x75kw |
| Production cycle period | 60s | 60s | 60s | 60s | 60s | 60s |
| Volume of mixer | 1000l | 1500l | 2000l | 3000l | 4000l | 4500l |
| Aggregate max Size | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm |
| Suppose volume of cement silo - OPTIONAL | 2x100t | 2x100t | 3x100t | 2x200t+1x100t | 4x200t | 4x300t |
| Capacity of batching machine | 1600l | 2400l | 3200l | 4800l | 6400l | 7200l |
| Volume of batching machine | 4x8 m³ | 4x12m³ | 4x20 m³ | 4x25 m³ | 4x30 m³ | 4x30 m³ |
| Quantity of aggregate | 4 | 4 | 4 | 4 | 4 | 4 |
| Productivity of aggregate belt conveyor | 250 m³/h | 350 m³/h | 500 m³/h | 750 m³/h | 1200 m³/h | 1200 m³/h |
| Max conveyor ability of screw conveyor | 40 t/h | 80 t/h | 80 t/h | 110 t/h | 160 t/h | 160 t/h |
| Unloading height | 4.0m | 4.0m | 4.0m | 4.0m | 4.0m | 4.0m |
| Total power of the plant | 150kw | 164kw | 210kw | 268kw | 363kw | 363kw |
